CNC Nesting Optimization: How Shops Cut Material Waste

Walk past the offcut rack in any millwork shop and you are looking at money. Some of those drops are unavoidable. A lot of them are not. They are there because the parts were arranged badly on the sheet before the machine ever started cutting.

That arrangement is called nesting, and CNC nesting optimization is the work of getting it right: fitting your parts onto each sheet so you buy fewer sheets, cut for fewer minutes, and throw less material in the bin. In our experience drafting for shops across the US and Canada, good nesting is one of the cheapest wins available in a shop, because it costs nothing on the floor. The savings are decided at a desk, before the first cut.

What Nesting Optimization Actually Does

Every job that runs through your CNC starts as a cut list: so many gables, so many shelves, so many drawer parts, out of so many sheets. Nesting software takes that list and works out how to place the parts on each sheet. Optimization is the difference between a lazy layout and a tight one.

A tight nest does three things for you at once. It raises your yield, meaning more of each sheet becomes product instead of scrap. It cuts machine time, because the router travels shorter paths between parts. And it saves tooling wear for the same reason. This is a big part of what our CNC machining support work comes down to: making the sheet, the machine, and the cut list agree with each other before production starts.

How much is on the table? In our own drafting work we have seen proper nesting reduce material waste by 10 to 15 percent on typical casework jobs. On a project that runs hundreds of sheets, that is not a rounding error. That is sheets you never have to buy.

Why the Software Defaults Are Not Enough

Here is the part most articles skip. Nesting software is good, and it has been good for years. So why do shops still waste material?

Because the software only optimizes what it understands, and a real millwork job carries rules the defaults do not know about:

Grain direction. A stack of maple veneer gables all need the grain running the same way. Lock that in and your nesting options shrink fast. An automatic nest that ignores grain looks efficient on screen and produces parts you cannot use.

Edge banding and oversize. Parts that get banded or trimmed need to be cut oversize. If the offsets are wrong in the library, every nest inherits the error.

Offcut strategy. A good nest sometimes leaves one large, usable drop instead of three small useless ones. That takes judgment. The software will happily shred the remainder into confetti if you let it.

Part priority and sequencing. Which parts must ship first? Which sheets should run while the material for the next batch is still on the truck? Nesting is also a scheduling decision, not just a geometry puzzle.

Machine constraints. Clamp positions, small part handling, onion skinning for parts that would otherwise fly off the spoilboard. The best layout on paper can be the wrong one for your actual machine.

An experienced programmer bakes all of this into the nest. The defaults do not. That gap is where the wasted sheets live.

The Numbers a Shop Should Watch

You do not need a consultant to find out whether nesting is costing you money. Three numbers tell the story:

1. Yield percentage. What share of each sheet becomes parts? Your nesting reports show it per sheet and per job. If nobody in the shop can quote this number, that is finding number one.
2. Sheets per job versus estimate. If jobs regularly consume more sheets than the takeoff said, either the estimate or the nest is off. Both are fixable.
3. Machine minutes per part. Watch this across similar jobs. Creeping cut times usually mean sloppy toolpaths and scattered nests, not a slower machine.

We wrote a full guide on reading these reports in our post on nesting reports and how they prevent costly cutting errors, and it pairs well with this one.

Nesting in Microvellum and Cabinet Vision

Both of the big millwork platforms nest well when they are set up well. That last part matters.

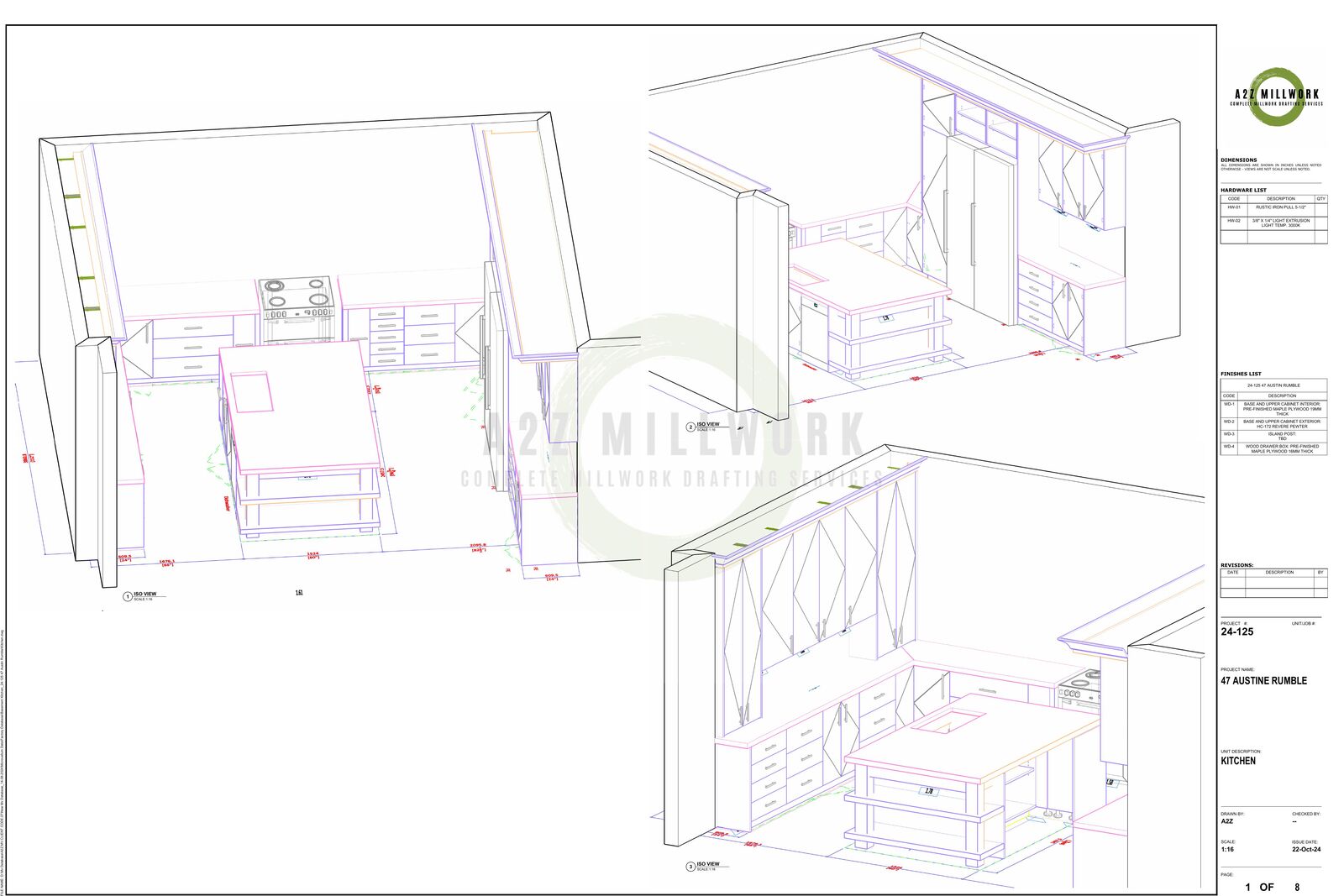

Microvellum drives nesting from the same model that produces your shop drawings, so part data flows straight through to the sheet layout. Cabinet Vision does the same through its own screen-to-machine path. In both, the quality of the nest depends on the quality of the library work underneath it: material definitions, part properties, machining assignments, and the rules we covered above. If you are weighing the two platforms, our Microvellum and Cabinet Vision comparison goes deeper on where each one shines.

The honest summary: the software is rarely the problem. The setup is. A shop running great software on a half-built library still gets mediocre nests.

Fix It In-House or Bring In Help?

Some shops should absolutely handle nesting themselves. If you have a programmer who knows your machine, your materials, and your library, and they have time to maintain all three, you are covered.

The shops that call us usually hit one of these walls instead:

• The person who set up the library left, and nobody fully understands it now.
• Production volume grew, and nesting time is eating the programmer's week.
• Jobs are winning on price, and the margin has to come from somewhere. Material yield is the last untapped place.

For those situations, our toolpath and nesting programming team works as an extension of your shop: we take the cut list, return machine-ready nests and files, and your CNC keeps running while your people build.
